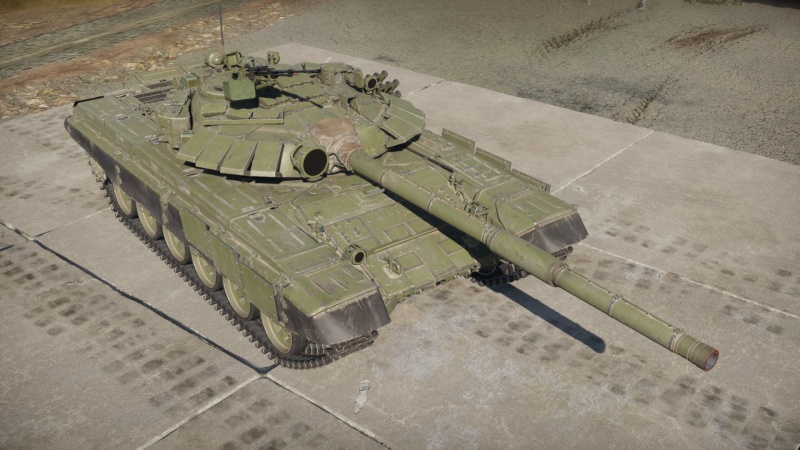

T-72B (1989)

Description

The T-72B Model 1989 is an armoured modification of the T-72B, which is the third variant of the T-72 main battle tank family. It is distinguished primarily by its use of advanced Kontakt-5 explosive reactive armour (ERA) and additional composite armour on the sides of the turret. The Kontakt-5 is a second-generation ERA that was designed and built in the Soviet Union. It is also the first type of ERA in the world to significantly reduce the penetration of armour-piercing fin-stabilised discarding sabot (APFSDS) ammunition, which conventional ERA cannot do.

Introduced in Update "Raining Fire", the T-72B Model 1989 playstyle is nearly identical to its predecessors, but it offers significantly more protection in general thanks to the introduction of the Kontakt-5 ERA. Other components, such as the main armament and overall structure, are identical to those of the T-72B variant. This gives the player a slightly more aggressive gameplay experience, but confrontation in narrow streets should still be avoided due to the slow reverse speed, which makes fast retreat difficult.

General info

Survivability and armour

While being the same tank as the T-72B, the T-72B (1989) has CONTACT-5 ERA instead of CONTACT-1, making it able to withstand greater kinetic energy damage (APFSDS, APDS, etc) while keeping its capability against chemical energy (HEAT-FS, ATGM, etc). It should be noted that, depending on the calibre and round, the ERA plates may even survive a hit or two. However, this is not something that should be expected most of the time.

Notes:

• ERA plates are 13 mm thick

Mobility

The T-72B (1989) is a slow and sluggish tank which has poor acceleration and handling. It has really poor reverse speed as well as hull traverse. However, it has a powerful engine which makes it capable of pulling and pushing enemy tanks as well as moving through rough terrain with ease. It does not have enough horsepower to climb over steep elevations. Speed-wise, it has a decent top speed (~60-70 km/h) which under specific situations it is able to be reached.

Modifications and economy

Armaments

Main armament

The T-72B has the powerful 2A46M 125 mm smoothbore cannon. It has a powerful selection of rounds, each with different uses and similarities between same types.

Ammunition

• 3BK18M: this is the starting HEATFS round which can be seen as poor when in frontal engagements against modern MBTs. However, the shaped charge as well as not losing penetration over distance makes it a decent round for sniping. However, its muzzle velocity is not fast and will be hard to aim at long distances.
• 3OF26: HE shell with a massive amount of explosive filler. This shell will destroy lightly armoured vehicles such as SPAA with overpressure.
• 3BM22: this is a tier 1 tungsten core APFSDS which has the second highest muzzle velocity seen in Russian darts. However, the weight as well as penetration make it unreliable when facing top tier MBTs frontally.
• 9M119: this is a tier 3 SACLOS ATGM which is seen already in T-72B. It is also seen in later T-72 models. It has decent penetration and flight speed, making it reliable for taking out helicopters and targeting enemies when use of an APFSDS shell is more difficult.
• 3BM42: this is a tier 4 APFSDS which has different ballistic performance than 3BM22. While it has more penetration power and greater mass, it has reduced speed (1,760 m/s vs 1,700 m/s).

Ammo racks

Ammo racks of the T-72B (1989)

Machine guns

Usage in battles

The T-72B (1989) playstyle is near identical to the T-72B but starts to give T-90A vibes due to ERA. This tank has the exact same modules, sights and combat systems as the previous T-72B. However, it has access to Kontakt-5 (K5) ERA, increasing not only the chemical protection of the tank against missiles and shaped charges but also solid shots like darts.

Enemies worth noting:

• XM-1 (Chrysler)/(GM): Avoid attempting combat with the 3BK18M HEATFS shells, despite their having thin composite armour
• AMX-30B2/AMX-30B2 BRENUS: DM23/33 have enough armour penetration to penetrate T-72 driver lower frontal plates, though all shells are effective against them in return.
• Leopard 2K: Turret mantlet is resistant to 3BK18M.
• AMX-40: Turret mantlet and lower frontal plate are highly resistant to 3BK18M.
• Strv 103: Depending on the hull angling, HEAT-FS rounds such as the 3BK18M might ricochet. APFSDS is recommended to be used when facing it frontally.

Pros and cons

Pros:

• Powerful 125 mm 2A46M-1 gun with various shells, including APFSDS, HEAT-FS, HE, ATGM
• CONTACT-5 ERA blocks significantly increases CE protection, and slightly for KE protection
• Low profile, is a small target compared to Western main battle tanks
• Laser rangefinder and high velocity APFSDS make sniping long distances easier
• Has both smoke grenade launchers and ESS
• With correct angling, upper frontal armour can deflect most rounds from counterpart tanks of other countries
• Autoloader continues working even if fighting a fire or replacing a crew member, and is low on the hull, making it more difficult to hit and detonate

Cons:

• Painful reverse speed of only -5 km/h, can very much get the player destroyed if not careful
• -6 degrees gun depression limits its ability to adapt different battlefield environments
• 7.1 seconds of reload is slower than the 5-second reload of some Western MBTs
• No ammo rack protection, anything that hits it usually leads to ammo detonation, destroying the vehicle instantly
• 3 closely packed crew members are easily knocked out
• Has 3 major weakspots: gun mantlet, driver's armour cutout, and lower front plate
• No thermal optics, only has night vision device

History

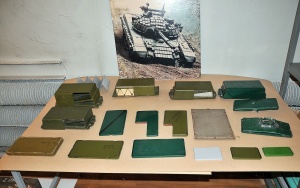

As seen in picture, the K1 ERA is a two layer "V" shaped one-use ERA brick. It is vulgarly called "LEGO brick" for its similarities with the famous modular building game.

Thanks to the increased combat seen in Middle East and threatening NATO powers, Uralzavodvagon decided to upgrade their previous T-72B tanks with CONTACT-1 (K1) ERA to CONTACT-5 (K5) ERA. It was also fitted with a new Fire Control System.

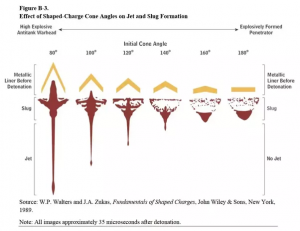

As seen in picture, the longer a CE projectile, the more shaped charge angle it can have, increasing the jet lenght and penetration power.

Kontakt-1

The K1 ERA is a first generation ERA meant to stop early and mid Cold War super plastic slugs and small jets including a wide variety or propelled grenades, anti-tank rockets, HEAT ammunition and ATGM. The K1 are rather small boxes (314 x 148 mm base area) with 3 mm thick steel walls. The reactive sandwich with the designation 4S20 consists of a 2 mm thick steel plate, a 7 mm thick explosive layer and another 2 mm thick steel plate. Thanks to its double plating, the K1 was effective when repelling HEAT jets from all angles thanks to the "V" shape unlike other ERA seen at the time like the Blazer ERA. The "V" shape plus the tank armour angling increased the effective protection of the ERA brick and the effective turret armour, this was the main reason why T-72AV, T-80B and T-64BV had clam-shaped ERA placement on the turret. It provided sufficient protection for all seen threats in combat at the time from NATO forces and related enemy forces. Germany and the United States drove tests on retrieved T-72B fitted with K1 ERA and estimated the protection range K1 has to offer against anti-tank munitions. It rounded between 300-480 mm of RHA against slug and small jets only with the following protection percentages:

• PG-7 and PG-9 launchers: ­less than 90%
• PG-7VL: less than 50%
• TOW-1: less than 60%

One of the first disadvantages of the K1 was its sensitivity against small-calibre firearms and heavy machine gun fire which prematurely detonated the ERA before it got hit by the anti-tank munition. For this reason, a non sensitive explosive was chosen in order to reduce this risk.

As the years passed, various threats started to show up against the K1 ERA, these were stronger and more canalized jets, tandem warheads and improved darts. For this reason, a more powerful explosive was required as well as an upgrade to the K1. Same as with K1, the plates (rather than bricks) are placed in a "V" shape on the turret (iconic T-90 turret) in order to increase the effectiveness.

X-Ray picture of M829A1 against K5. Test driven by the US and Germany, 1996.

Kontakt-5

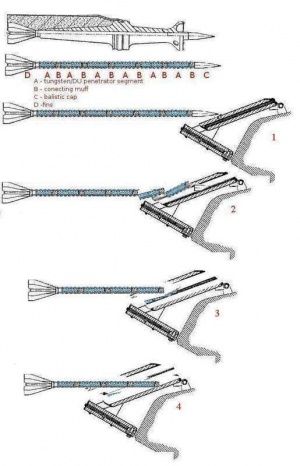

The K5 was a followed up design of ERA capable of surpassing the K1 capabilities against CE ammunition with added protection against KE ammunition, a capability that was never seen before, this made the K5 the world's first anti-KE ERA. The K5 was designated as an "integrated ERA" due to the way it was mounted on tanks. The K5 consists of the 4S22 explosive sandwiched between thick heavy steel plates. Thanks to this, the ERA is somewhat safe against tandem charges as the tandem charge precursor has to be heavier and stronger in order to detonate the ERA before the main charge detonates, this made it immune to heavy machine gun fire. Depending on the mount, a single layer or two is added. It is claimed that the K5 has a protection of 300 mm of RHA against KE with a CE protection ranging from 400-550 mm. While these claims are not fully confirmed, it is known the K5 has at least a 20% penetration reduction against APFSDS, capable of dealing with DU darts such as the M829A1, increasing the CE effectiveness by 1.9-2.0 and KE effectiveness to 1.2. The United States and Germany drove tests on the K5 and captured an X-Ray image (see above). It can be clearly seen how the dart is completely fractured. This is due to the shockwave generated by the explosives which fly from the ballistic cap through the dart and end up on the tail. Non-segmented darts are more rigid and less flexible, meaning shockwaves will shatter them more than if it moved with the shockwave (similar effect hydraulic pistons and flexible concrete has on earthquake proof buildings). As seen in the second picture, segmented ERA is not safe from K5 either. It should be noted that, in segmented rods, the penetrator is segmented into various segments which make the overall penetration. Non-segmented ones are full piece penetrator. While the K5 can fracture rods, it should be noted that the K5 cannot fully stop the dart. The remains are stopped by the actual tank armour but with reduced effort as dart penetration has already been reduced. Different from light ERA in which the container is fully destroyed by the explosion, K5 maintains the mounts as the explosion is made on the outer plates and not inside the container. This is the reason why T-80U and T-90 keep their "V" shaped turret even after being hit. The mounts provide appliqué armour but not sufficient protection to stop jets or darts.

Media

Skins

• Skins and camouflages for the T-72B (1989) from live.warthunder.com.

See also

Other vehicles of similar configuration and role

• T-64 (Family)
• T-80 (Family)
• ZTZ96 · ZTZ96A

External links

• [Devblog] New T-72 modifications: here come the top-of-the-line Russians!
