How to create a basic multiplayer mission

1. Run mission editor (missioned.cmd in WarThunderCDK folder).

2. Select a map in Select binary dump file window by pressing ... tab (all map files are stored here: WarThunder\levels)

Note: You can edit a mission without loaded map, location in scene viewer is just a preview.

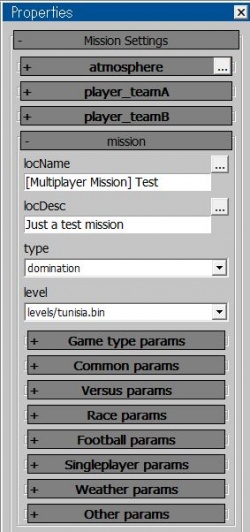

3. Set basic settings in the Mission Editor.

• Choose the side toolbar Mission Settings -> mission
• Choose a name for your mission that will be displayed for other players in locName tab

Note: You can use space there and for example write down [Multiplayer Mission] Test

• Choose a description for your mission in locDesc tab
• Set a mission type to domination in type tab
• Choose a location map in level tab
• Choose time of a day and weather in Weather params tab

Not needed since you can do that in custom battle settings

• If you want to make it a free for all mode (everyone vs everyone without teams) then go to Game type params and enable gt_ffa and gt_ffa_deathmatch options
• Change the number of tickets in scoreLimit which you can find in Versus params tab

Note: by default it is set to 500

• Change the number of tickets that are lost after someone dies in deathPenaltyMul which you can find in Versus params tab

Note: by default it is set to 1 so it will remove 100 tickets from one of teams every time someone dies, if for example you set it to 0.1 then the game will remove 10 tickets when someone dies

Optional if you want to make it work with CSV files

• Save your mission somewhere as a .blk file
• Open it in notepad
• Under mission{ add this line:

name:t="basic_multiplayer_mission"

Note: You can't use capital letters and there should be no spaces

Important notes

• It is not possible to use imports function in multiplayer missions
• There's a size limit for multiplayer missions and it is set to 512 KB, so if you are planning to add lots of triggers try to optimize them as much as it is possible, using variables for that is a really good idea, also don't forget about useForTriggerFiltered option which makes it possible for actions to select only a few units that meet conditions (it is the best to use squad unit which consist of many units in it), this option is available in many actions.
• If you are planning to change properties of selected player units (for example to repair selected units if they enter one of previously added areas) it is a really good idea to create a squad unit, put there all player units (all t1_player, t2_player units) and call it all_players_squad.
• It is possible to use CSV files in multiplayer missions but every player needs to download them before joining to the custom battle with a custom multiplayer mission if they want to see objectives, hints and other messages.
• It is possible to use custom weather settings in multiplayer mission (like forceSkiesInitialRandomSeed) but you need to make sure that mission weather matches custom battle weather type (so for example in both it is set to blind or good).
• Players are able to spawn in multiplayer missions 30 seconds after the start.
• All triggers in multiplayer mission are starting to work 30 seconds after the start of mission, unless its Event is set to initMission.
• Do not enable or disable all available "Game type parameters", only those that you want should be enabled and even when they are unchecked it can cause issues which will make the mission unplayable, it is the best to leave them disabled (if you pressed them then just press [...] button and then select Remove).
• The other function that can prevent the mission from launching is units_include, it should always be disabled and if it is not then just remove it by using [...] button.
• Only up to 512 units (structures, tankModels etc.) can be added in multiplayer missions and there can be up to 1500 objectGroups units.

• You can find more information about the Mission Editor here and more information about triggers here

Creating slots for players

The first and the most important thing that is needed to make the mission work is to make it possible for players to join to the battle. You can do that by adding "slots", multiplayer mission needs to have at least two of them to be playable.

Unit creation icon

1. Create a new unit by pressing Create unit icon and place it somewhere (you can control the map view by pressing SPACE).

Unit properties icon

2. Open its properties (by for example pressing P).

• Change the Name: to t1_player01
• Switch its type to armada
• Find a dummy unit in Class tab and select it

Note: It will work for all unit types, planes, tanks, ships and helicopters

3. Copy t1_player01 unit.

Note: You will need it to create player slots for the mission, so it is preferable to create 16 of them, the game supports up to 32 players per team

• Select the unit
• Press W
• While holding Shift select one of the displayed arrows and then drag it until a new unit appears
• The CDK will show you a new window, in this window change the Count of clones: amount to the number that you want in your mission
• Select Auto rename
• Press Ok, now you should see lots of copies of this unit named t1_player02, t1_player03, t1_player04 etc.

4. Create the same amount of t2_player units by copying t1_player units.

• In Unit copying window change Name of clone(s): to t2_player01
• Change the Count of clones: amount to the number that equals amount of t1_player units (set it to 1)
• Press Ok
• Now you should see lots of copies of t1_player units named t2_player01, t2_player02, t2_player03 etc.

5. Go back to the side toolbar Mission Settings and add these units to make them usable as slots for players in your multiplayer mission.

• Select player_teamA
• Press wing to add new slots and add all t1_player units there one by one
• Select player_teamB
• Press wing to add new slots and add all t2_player units there one by one

Note: they can't be added as squads (by putting all units in for example t1 and t2 squad unit) if you do that then the mission will simply not work

Creating respawn zones for players

The second thing that you need to do is to make it possible for players to spawn in your mission, both teams need to have at least one spawn zone per team, but it is the best to add at least ten areas which will be added to the Squad unit to avoid some issues like players spawning in each other. It is recommended to use at least one Squad unit with areas for spawn zones per unit type, so for example one for planes, one for tanks and then another set for the other team, so four Squads in total and 10+ spawn zone areas per squad.

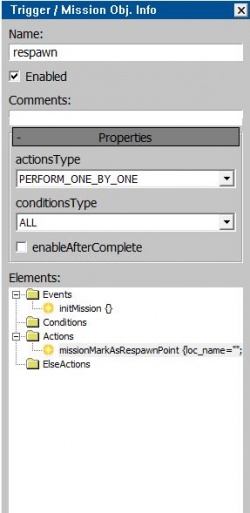

Setting up a trigger for respawn action

1. Choose the side toolbar Triggers / Missions Obj. Navigat

Trigger properties icon

2. Press the Trigger button to create a new trigger

3. Press the Properties and Trigger/MissionObj info icon which you can find on the top toolbar to show the tab with trigger properties.

4. Select your new trigger and change its Name to for example respawn.

5. Make sure that Enabled is switched on.

6. Change the Events type to initMission.

Note: You need to do it this way because otherwise you will need to wait at least 30 second after launching the mission to be able to select one of available spawn zones

• In lower part of this toolbar select periodicEvent {time=1.00} in the Elements: window
• Select Elements button on the bottom and press periodicEvent

Note: (if nothing happens then select one of folders in the Elements: window and then switch back to periodicEvent {time=1.00})

• A new window should appear, select initMission there and press Ok or double click on initMission

Adding air spawns for aeroplanes and ground spawns for ground units

1. Create areas for respawn action.

Area creation icons

• Press one of area creation icons on the top toolbar
• Press the ground on the map view in the place where you want to put your respawn area

• press only if you selected the first icon (Point)
• press and drag (you change its size by doing that) if you selected other icons (Sphere, Cylinder or Box)

2. Change properties of your area.

• Change Name: to t1_spawnarea_01
• Make at least 10 areas that are named t1_spawnarea_01, t1_spawnarea_02, t1_spawnarea_03 etc.
• copy all created t1_spawnarea areas and call them t2_spawnarea_01, t2_spawnarea_01, t2_spawnarea_01 etc (you need them for both teams)

Note: If those spawns are meant to be for airplanes then place them in the air

if for tanks then place them on the ground

if for ships then place them on the sea level

3. Add a respawn action.

• Press the Action button in the trigger properties toolbar
• Below Filter: type missionMarkAsRespawnPoint
• Press Ok or double click on missionMarkAsRespawnPoint

4. Add respawn areas to missionMarkAsRespawnPoint action.

• Select missionMarkAsRespawnPoint action in Elements: window
• Add all existing t1_spawnarea areas to the tab next to target, you can create more of them by just pressing a wide target tab below
• Change the loc_name (name of that spawn zone which will be visible in game, you can use spaces and capital letters) or leave it be if you want the game to set default respawn names (Respawn #1, #2 etc.)
• Press a wide team tab, a new selectable tab should appear, press it and select A
• Press a wide tags tab on the bottom of option, it will create an expandable window with tabs of all available tags in the game, select those that you want to use in your mission (air for airplanes, tank for ground units, ship for boats and ships)

Note: Tags are not optional, it is an important option in which you select what unit types can spawn on selected spawn area

5. Copy existing missionMarkAsRespawnPoint action to make respawn zones for the second team.

• Below the Elements: window, there should be a copy tab, select missionMarkAsRespawnPoint action and then press this copy tab
• Press Paste ... tab, a new window should appear
• Select missionMarkAsRespawnPoint action there and press ok
• Now you should see two the same actions in the Elements: window, select the second one
• Change all target areas to those that are meant to be for the second team (B / T2)
• Switch the team tab to B

Note: You can speed up changing targets by creating an area_squad unit and then putting all t2_spawnarea areas there, then selecting this squad in the missionMarkAsRespawnPoint action properties

Notes:

• If you have any problems with the direction of spawn zones (for example when you rotated the area but it still spawns you in the same direction) then enable isStrictSpawn and resetStrictSpawnIndex options in missionMarkAsRespawnPoint action.

Adding airfield or carrier spawn for airplanes

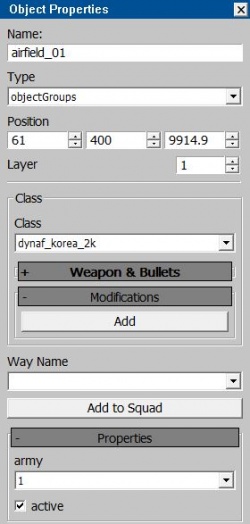

1. Create an airfield unit.

• Select Create unit icon on the top toolbar


  Unit creation icon
• Select created unit
• Open its properties (by for example pressing P)


  Unit properties icon
• Change its Name: to airfield_01
• Change its type to objectGroups

• Select one of available airfields in Class tab

Note: all names of airfields start with dynaf_

• Change its army to 1

Note: depends for which team you want to make it, remember that 1 = A team, 2 = B team

2. Add a respawn action.

• Press the Action button in the trigger properties toolbar
• Below Filter: type missionMarkAsRespawnPoint
• Press Ok or double click on missionMarkAsRespawnPoint

3. Add the airfield to missionMarkAsRespawnPoint action.

• Select missionMarkAsRespawnPoint action in Elements: window
• Add airfield_01 to the tab next to target
• Change the loc_name (name of that spawn zone which will be visible in game, you can use spaces and capital letters) or leave it be if you want the game to set default respawn names (Respawn #1, #2 etc.)
• Select isAirfield
• Press a wide team tab, a new selectable tab should appear, press it and select A
• Select Object and set it to airfield_01
• Press a wide tags tab on the bottom of option, it will create an expandable window with tabs of all available tags in the game, select those that you want to use in your mission (air)

Note: Tags are not optional, it is an important option in which you select what unit types can spawn on selected spawn area

The same method works also for the carriers.

Adding airfield spawn for airplanes on a normal terrain

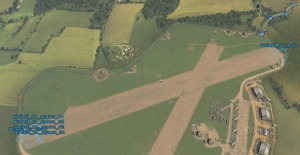

Custom airfield

1. Create areas for your airfield

• Create new sphere areas.
• One at the airfield start, set its name to airfield_01_start
• One at the airfield end, set its name to airfield_01_end
• Add several areas for spawn zones, set their names to airfield_01_spawn_01, airfield_01_spawn_02 etc.

2. Add the airfield

• Add a new action called addAirfield
• Set the runwayStart as airfield_01_start
• Set the runwayEnd as airfield_01_end
• Add all spawn zones to spawnPoint
• Make the airfield visible on the map by enabling visibleOnHud option

Note: It is important to set the runwayWidth value to something high, at least 100, so there are no issues with the spawn direction, also it is the best to put all spawn areas withing the airfield's starting zone, so the airfield_01_start in this case and that will require to set its size to 300-500 depending on the amount of spawn areas that it will be covering

3. Add the airfield to missionMarkAsRespawnPoint action.

• Add a new missionMarkAsRespawnPoint action and select it
• Set the airfield_01_start as the target
• Change the loc_name (name of that spawn zone which will be visible in game
• Select isAirfield
• Press a wide team tab, a new selectable tab should appear, press it and select A if you want the A team to respawn there, or B if you want it be for the B team
• Press a wide tags tab on the bottom of option, it will create an expandable window with tabs of all available tags in the game, select those that you want to use in your mission (air)

Note: Tags are not optional, it is an important option in which you select what unit types can spawn on selected spawn area

Creating moving spawns

Spawns can be assigned to units and that makes it possible to spawn next to them as long as they are alive.

1. Create an unit (tank, ship or airplane).

2. Place it somewhere and give it waypoints so it does not stay at the same place.

3. Add a new action called missionMarkAsRespawnPoint.

• Set the target as the unit (tank, ship or airplane)
• Set the loc_name to for example Moving spawn so players will know about it
• Enable isUnit option
• Press a wide team tab, a new selectable tab should appear, press it and select A if you want the A team to respawn there, or B if you want it be for the B team
• At the backupZone, it needs to be placed in safe place, it will be used in a situation when the unit is not alive anymore
• Set the offset, it will make spawned units appear in a certain distance from the unit that is used as a spawn point
• Press a wide tags tab on the bottom of option, it will create an expandable window with tabs of all available tags in the game, select those that you want to use in your mission

Notes:

• If you are planning to create an airfield spawn zone by using addAirfield action (which allows to add spawn zones manually) and you decide to set the Event of that trigger to initMission then remember to always put missionMarkAsRespawnPoint after these addAirfield action, not before them and if you want to put missionMarkAsRespawnPoint in other trigger then make sure to disable it and then add a triggerEnable action pointing at that trigger from the trigger with addAirfield action, otherwise there might be issues with spawn zones and there's a chance that you won't be able to spawn your plane.

Creating capture zones

This step of making a multiplayer mission is optional, but since capture zones can be used as a main objective of the mission and they are really easy to make it is not a bad idea to make one, it will also give the AI units some tasks, otherwise they would just stay at spawn zones.

1. Create a new area and call it capture_zone_01.

2. Create a new trigger.

3. Add a new action called missionMarkAsCaptureZone.

• Assign your new area to target (you should be able select capture_zone_01)
• Set to which army it should be assigned by default (after launching your mission, 0 - neutral, 1 - A, 2 - B)
• Set canCaptureOnGround if you want to be able to capture it by staying on the ground in the capture zone area (disabled by default)
• Set canCaptureInAir if you want it to be able to capture it while being in the air (enabled by default)
• Set canCapturebyGM if you want to make it capturable by ground units
• Set onlyPlayersCanCapture if you want it to be capturable only by players
• Set CaptureNoPenalty if you want to disable ticket drain when it is captured by one of teams
• Add tags to select which unit types are allowed to capture this zone

Note: you can adjust how fast it drains tickets in missionSetProperties action, there are two ctaCaptureZone options which control that

Saving the mission

Now when everything is finished the mission should be saved and uploaded to a file hosting service, it is not hard to find one of them and if there are any issues you can always upload your mission on live.warthunder.com.

1. On the most top bar select Mission Editor

2. Press Save mission (Ctrl+M)

3. Select where you want to save the mission and set its name, remember to save it as a .blk file

That's all, now all you need to do is to upload your mission somewhere or on live.warthunder.com site, but don't forget to add a proper image and description for your mission. You will find more details here.

Remember that after every mission update on live.warthunder.com it generates a new download link which needs to be copied to the game.

Options and functions available in multiplayer missions

Versus mode parameters

Main options and functions used in multiplayer missions.

Game type parameters

Various gamemode types or functionalities that can be disabled or enabled.

If you want to make a simple team deathmatch mission leave all these options disabled (not unchecked) and if you already enabled them then press the button with three dots and disable them manually.

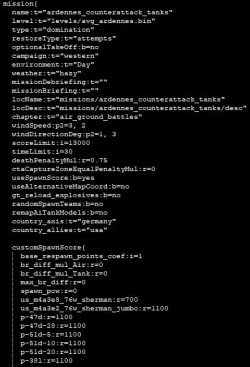

Enabling Spawn Points system

Spawn Points system is a feature that can allow you add an additional spawn requirement, the need of gaining Spawn Points by capturing zones or destroying units controlled by players or AI. In Realistic Battles for Ground Forces they are needed if you want to spawn in another vehicle after you lose your current one, better vehicles require more Spawn Points and every time you die it will increase Spawn Points requirements. In Enduring Confrontation game mode you need Spawn Points to spawn in better airplanes, right after joining to battle you get 200 SP which allows you to spawn in airplanes with the lowest Battle Rating in bracket of that battle (for example 5.0 in 5.0-6.3 battle) and in a vehicle that has higher BR by 0.3. This section will explain how to make this system work in the custom multiplayer missions.

1. Go to Mission Settings:> Versus params and enable useSpawnScore

2. If you haven't saved the mission yet then do it now

3. Open the blk mission file in Notepad

4. Scroll down to the mission{ block

5. Paste all that code below to your .blk file under the mission{ block so it looks like on the screenshot to the right

Note: Spawn Points can also be controlled during the mission by using the playerAddRoundScore action

customSpawnScore{
 base_respawn_points_coef:i=250
 br_diff_mul_Air:r=0.0
 br_diff_mul_Tank:r=0.0
 br_diff_mul_Ship:r=0.0
 max_br_diff:r=0.0
 spawn_pow:r=0.0
 spawnCostMulForFighterWithBombs:r=0.0
 // If you want to add multipliers for specific vehicles units or types then add them here and remove "//"
}

6. Save the file, reload the mission in the Mission Editor

Note: If you save your mission in the Mission Editor after adding this script it won't remove these lines

Explanation of what Spawn Points system lines do:

Note: Setting them to 0.0 will disable selected features (the one with the number set to 0.0)

Option	Description
base_respawn_points_coef	Sets a default Spawn Points amount, for example if you set it to 1 then you will need 1 SP to spawn in vehicles Note: If you set it to 1 you will give every vehicle an exact Spawn Points value, so if you set it to 700.0 then you will need 700 SP in game to spawn in it
br_diff_mul_Air	Sets a multiplier of Spawn Points for airplanes which depends on what BR do they have (the higher BR the higher needed SP amount)
br_diff_mul_Tank	Sets a multiplier of Spawn Points for tanks which depends on what BR do they have (the higher BR the higher needed SP amount)
br_diff_mul_Ship	Sets a multiplier of Spawn Points for ships which depends on what BR do they have (the higher BR the higher needed SP amount)
max_br_diff	Increases a difference of Spawn Points between units with different Battle Rating
spawn_pow	Increases Spawn Points requirements after every death
spawnCostMulForFighterWithBombs	Sets a multiplier of Spawn Points for airplanes with loaded bombs or other weapons
spawnCostMulForHelicopterWithATGM	Sets a multiplier of Spawn Points for helicopters with loaded ATGMs
maxRespawnPointsMul	Unknown

You can also set a multiplier for every single vehicle or group of them (sorting by their type)

To add a multiplier for a specific vehicle you need to add its name and then add :r=0.0 (with any number set by you) to it, you can find the list of all vehicles here.

Example:

bf-109g-14:r=1.5

customSpawnScore{
 base_respawn_points_coef:i=1
 br_diff_mul_Air:r=0
 br_diff_mul_Tank:r=0
 max_br_diff:r=0
 spawn_pow:r=0
 us_m4a3e8_76w_sherman:r=700
 us_m4a3e2_76w_sherman_jumbo:r=1100
 p-47d:r=1100
 p-47d-28:r=1100
 p-51d-5:r=1100
 p-51d-10:r=1100
 p-51d-20:r=1100
 p-38l:r=1100
 a-20g:r=1100
 germ_pzkpfw_VI_ausf_b_tiger_IIh:r=2000
 germ_pzkpfw_VI_ausf_h1_tiger:r=1500
 germ_pzkpfw_VI_ausf_e_tiger:r=1600
 germ_pzkpfw_V_ausf_g_panther:r=1200
 germ_panzerjager_nashorn:r=700
 germ_panzerjager_panther:r=1400
 germ_panzerbefelhswagen_jagdpanther:r=1400
 fw-190a-8:r=1100
 bf-109g-6:r=1100
 bf-109g-10:r=1100
 bf-109g-14:r=1100
}

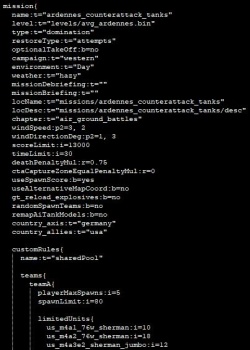

Limiting amount and type of units available for respawn

This script allows you to set a specific number of available respawns for specific vehicles or types of them, you can limit how many times can one team respawn or how many times can players use a specific vehicle.

To make this script work:

1. If you haven't saved the mission yet then do it now

2. Open the blk mission file in Notepad

3. Scroll down to the mission{ block

4. Paste all that code below to your .blk file under the mission{ block so it looks like on the screenshot to the right

    customRules{
      name:t="sharedPool"

      teams{
        teamA{
          playerMaxSpawns:i=8
          spawnLimit:i=60

          limitedTags{
          }

          limitedActiveClasses{
          }

          limitedClasses{
          }

          limitedUnits{
          }

          unlimitedUnits{
          }
        }

        teamB{
          playerMaxSpawns:i=8
          spawnLimit:i=60

          limitedTags{
          }

          limitedClasses{
          }

          limitedActiveClasses{
          }

          limitedUnits{
          }

          unlimitedUnits{
          }
        }
      }
    }

5. Save the file, reload the mission in the Mission Editor

Note: If you save your mission in the Mission Editor after adding this script it won't remove these lines

Explanation of what Shared Pool script lines do:

Option	Description
teamA	Under this block you put all units that you want to restrict for the A or 1 team
teamB	Under this block you put all units that you want to restrict for the B or 2 team
spawnLimit	Sets a maximum amount of respawn for team
playerMaxSpawns	Sets a maximum amount of respawns per player
limitedUnits	You can put there all vehicles types or specific ones and add :i= with a number, it will set a spawn amount limit for that specific unit
unlimitedUnits	You can set if you want to make amount of specific units unlimited (:b=yes or :b=no needs to be added after the unit's name)
limitedTags	Used to set the vehicle limit based on its tag
limitedClasses	Used to set the vehicle limit based on its unit class
limitedActiveClasses	Used to set the vehicle limit based on its unit class, makes it possible to limit the amount of specifc unit type being active at the same time, so for example after spawning three heavy tanks it will not be possible to spawn more until one of them is destroyed

To set amount of respawns for a specific vehicle you need to add its name and then add :i=1 (with any number set by you) to it, you can find the list of all vehicles here.
Example:

bf-109g-14:i=1

Classes and tags have higher priority than limitedUnits and unlimitedUnits, so for example if you set the limitedTags to air:i=10 and unlimitedUnits to f-5e:b=yes then after 10 spawns it will not be possible to spawn the F-5E anymore. It is not possible to run the mission with limitedTags or limitedClasses only, there need to be at least one unit in limitedUnits or unlimitedUnits.

customRules{
 name:t="sharedPool"

  teams{
   teamA{
    playerMaxSpawns:i=5
    spawnLimit:i=80
   limitedUnits{
    us_m4a1_76w_sherman:i=10
    us_m4a2_76w_sherman:i=18
    us_m4a3e2_sherman_jumbo:i=12
    us_m4a3e2_sherman_jumbo_cobra_king:i=8
    us_m4a3e2_76w_sherman_jumbo:i=6
    us_m4a3e8_76w_sherman:i=10
    us_m18_hellcat:i=8
    us_m36:i=10
    us_halftrack_m15:i=8
    us_halftrack_m16:i=8
    p-47d:i=4
    p-47d-28:i=4
    p-51d-5:i=4
    p-51d-10:i=4
    p-51d-20:i=4
    p-38l:i=4
    a-20g:i=4
   }
   unlimitedUnits{
    us_m4a2_sherman:b=yes
    us_m24_chaffee:b=yes
    us_m10:b=yes
   }
  }
   teamB{
    playerMaxSpawns:i=5
    spawnLimit:i=80
   limitedUnits{
    germ_pzkpfw_VI_ausf_b_tiger_IIh:i=2
    germ_pzkpfw_VI_ausf_h1_tiger:i=3
    germ_pzkpfw_VI_ausf_e_tiger:i=3
    germ_pzkpfw_V_ausf_a_panther:i=8
    germ_pzkpfw_V_ausf_g_panther:i=10
    germ_panzerjager_nashorn:i=8
    germ_panzerjager_panther:i=4
    germ_panzerbefelhswagen_jagdpanther:i=4
    germ_flakpanzer_IV_Wirbelwind:i=8
    germ_pz_IV_L70:i=10
    fw-190a-8:i=4
    bf-109g-6:i=3
    bf-109g-10:i=3
    bf-109g-14:i=3
   }
   unlimitedUnits{
    germ_pzkpfw_IV_ausf_H:b=yes
    germ_pzkpfw_IV_ausf_J:b=yes
    germ_panzerbefelhswagen_IV_ausf_J:b=yes
    germ_stug_III_ausf_G:b=yes
   }
  }
 }
}

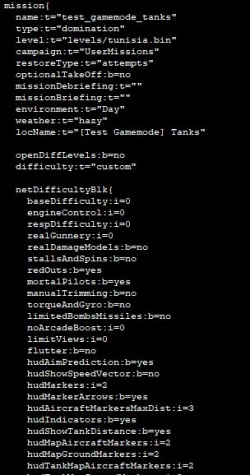

Enabling custom difficulty

Custom difficulty is the same feature that is available in game when you create a custom battle, you can see it on the top of window and it is called Difficulty. The only difference between it and the mission version is that you can add and customize more options in the mission file.

To make this script work:

1. If you haven't saved the mission yet then do it now

2. Open the blk mission file in Notepad

3. Scroll down to the mission{ block

4. Check if you have this line there difficulty:t=, if no then add this difficulty:t="", if yes then replace everything after :t=" with '"arcade", "realistic", or "hardcore", depending which one is the closest to the one that will be used

5. Make sure that openDiffLevels is disabled (unchecked) in Mission Settings -> mission -> Common params (or just add it manually by pasting this line openDiffLevels:b=no)

6. Paste all that code below to your .blk file under the mission{ block so it looks like on the screenshot to the right

Important note: All values after :i= can be set to 0, 1 or 2, all values after :b= can be set to no or yes

netDifficultyBlk{
   baseDifficulty:i=1
   engineControl:i=1
   realGunnery:i=1
   realDamageModels:b=yes
   stallsAndSpins:b=yes
   redOuts:b=yes
   mortalPilots:b=yes
   manualTrimming:b=no
   torqueAndGyro:b=no
   flutter:b=yes
   limitedBombsMissiles:b=yes
   sensor:i=1
   seeker:i=1
   radarAssist:b=yes
   rwr:i=1
   noArcadeBoost:i=1
   limitViews:i=0
   hudAimPrediction:b=no
   hudMarkers:i=2
   hudMarkerArrows:b=yes
   hudAircraftMarkersMaxDist:i=3
   hudIndicators:b=yes
   hudShowTankDistance:b=no
   hudTankRangefinder:i=1
   hudMapAircraftMarkers:i=2
   hudMapGroundMarkers:i=2
   hudMarkersBlink:b=yes
   hudRadar:b=yes
   hudDamageModel:i=1
   hudDamageIndicator:b=yes
   hudLargeAwardMessages:b=yes
   hudWarnings:b=yes
   noRespawns:b=no
   respDifficulty:i=1
   aircraftHelpers:b=no
   collectiveDetection:b=yes
   distDetection:i=1
   allowControlHelpers:i=0
   forceInstructor:b=no
   playerTurretDeviation:i=1
   hudOutline:b=no
   ctaCaptureMul:i=1
   damageModel:i=1
   hudSpawnShotMarkers:b=no
   hudShowEnemyDamageLog:b=yes
   bombAssaultFuseTimeOverride:b=no
   noviceDM:b=no
   crewHealingOnlyOnCaptureZone:b=yes
   showBombSight:b=no
   showRadarGunSight:b=no
   visibleNotTraceableIndicators:b=yes
   checkTreesForIndicators:b=no
   drawShipBulletFallIndicator:b=no
   showShipBulletTimer:b=yes
   ignoreReplenishment:b=no
   aircraftFriendlyFireForBanOnly:b=no
   enableLeaveKills:b=yes
   rocketSpotting:b=yes
   airToAirMissileDetection:b=no
   nightVisionInTPS:b=yes
   hudDetectAlly:b=no
   keepDeadTankOnMap:b=yes
   keepDeadShipOnMap:b=yes
   hudSendSquare:b=yes
   hudShowAttentionMarkForAircraft:b=no
   shipSupportPlanes:b=no
   lightDM:b=no
   checkActivityByPlayerDamage:b=no
   shipGunsRearm:b=no
}

Explanation of what all these lines do:

netDifficultyBlk{
   baseDifficulty:i=0
   engineControl:i=0
   realGunnery:i=0
   realDamageModels:b=no
   stallsAndSpins:b=no
   redOuts:b=yes
   mortalPilots:b=yes
   manualTrimming:b=no
   torqueAndGyro:b=no
   flutter:b=no
   limitedBombsMissiles:b=no
   radarAssist:b=yes
   sensor:i=0
   seeker:i=0
   rwr:i=0
   noArcadeBoost:i=0
   limitViews:i=0
   hudAimPrediction:b=yes
   hudMarkers:i=2
   hudMarkerArrows:b=yes
   hudAircraftMarkersMaxDist:i=3
   hudIndicators:b=yes
   hudShowTankDistance:b=yes
   hudTankRangefinder:i=0
   hudMapAircraftMarkers:i=2
   hudMapGroundMarkers:i=2
   hudMarkersBlink:b=yes
   hudRadar:b=yes
   hudDamageModel:i=0
   hudDamageIndicator:b=yes
   hudLargeAwardMessages:b=yes
   hudWarnings:b=yes
   noRespawns:b=no
   respDifficulty:i=0
   aircraftHelpers:b=yes
   collectiveDetection:b=yes
   distDetection:i=2
   allowControlHelpers:i=0
   forceInstructor:b=no
   playerTurretDeviation:i=0
   hudOutline:b=yes
   ctaCaptureMul:i=0
   damageModel:i=0
   hudSpawnShotMarkers:b=no
   hudShowEnemyDamageLog:b=yes
   bombAssaultFuseTimeOverride:b=no
   noviceDM:b=no
   crewHealingOnlyOnCaptureZone:b=no
   showBombSight:b=yes
   showRadarGunSight:b=yes
   visibleNotTraceableIndicators:b=yes
   checkTreesForIndicators:b=no
   drawShipBulletFallIndicator:b=yes
   showShipBulletTimer:b=yes
   ignoreReplenishment:b=no
   aircraftFriendlyFireForBanOnly:b=yes
   enableLeaveKills:b=yes
   rocketSpotting:b=yes
   airToAirMissileDetection:b=no
   nightVisionInTPS:b=yes
   hudDetectAlly:b=no
   keepDeadTankOnMap:b=yes
   keepDeadShipOnMap:b=yes
   hudSendSquare:b=no
   hudShowAttentionMarkForAircraft:b=no
   shipSupportPlanes:b=yes
   lightDM:b=no
   checkActivityByPlayerDamage:b=no
   shipGunsRearm:b=yes
   opticalAgmArcadeControl:b=yes
}

 netDifficultyBlk{
   baseDifficulty:i=1
   engineControl:i=1
   realGunnery:i=1
   realDamageModels:b=yes
   stallsAndSpins:b=yes
   redOuts:b=yes
   mortalPilots:b=yes
   manualTrimming:b=no
   torqueAndGyro:b=no
   flutter:b=yes
   limitedBombsMissiles:b=yes
   sensor:i=1
   seeker:i=1
   radarAssist:b=yes
   rwr:i=1
   noArcadeBoost:i=1
   limitViews:i=0
   hudAimPrediction:b=no
   hudMarkers:i=2
   hudMarkerArrows:b=yes
   hudAircraftMarkersMaxDist:i=3
   hudIndicators:b=yes
   hudShowTankDistance:b=no
   hudTankRangefinder:i=1
   hudMapAircraftMarkers:i=2
   hudMapGroundMarkers:i=2
   hudMarkersBlink:b=yes
   hudRadar:b=yes
   hudDamageModel:i=1
   hudDamageIndicator:b=yes
   hudLargeAwardMessages:b=yes
   hudWarnings:b=yes
   noRespawns:b=no
   respDifficulty:i=1
   aircraftHelpers:b=no
   collectiveDetection:b=yes
   distDetection:i=1
   allowControlHelpers:i=0
   forceInstructor:b=no
   playerTurretDeviation:i=1
   hudOutline:b=no
   ctaCaptureMul:i=1
   damageModel:i=1
   hudSpawnShotMarkers:b=no
   hudShowEnemyDamageLog:b=yes
   bombAssaultFuseTimeOverride:b=no
   noviceDM:b=no
   crewHealingOnlyOnCaptureZone:b=yes
   showBombSight:b=no
   showRadarGunSight:b=no
   visibleNotTraceableIndicators:b=yes
   checkTreesForIndicators:b=no
   drawShipBulletFallIndicator:b=no
   showShipBulletTimer:b=yes
   ignoreReplenishment:b=no
   aircraftFriendlyFireForBanOnly:b=no
   enableLeaveKills:b=yes
   rocketSpotting:b=yes
   airToAirMissileDetection:b=no
   nightVisionInTPS:b=yes
   hudDetectAlly:b=no
   keepDeadTankOnMap:b=yes
   keepDeadShipOnMap:b=yes
   hudSendSquare:b=yes
   hudShowAttentionMarkForAircraft:b=no
   shipSupportPlanes:b=no
   lightDM:b=no
   checkActivityByPlayerDamage:b=no
   shipGunsRearm:b=no
}

netDifficultyBlk{
   baseDifficulty:i=2
   engineControl:i=2
   realGunnery:i=1
   realDamageModels:b=yes
   stallsAndSpins:b=yes
   redOuts:b=yes
   mortalPilots:b=yes
   manualTrimming:b=yes
   torqueAndGyro:b=yes
   flutter:b=yes
   limitedBombsMissiles:b=yes
   sensor:i=2
   seeker:i=2
   radarAssist:b=no
   rwr:i=2
   noArcadeBoost:i=1
   limitViews:i=2
   hudAimPrediction:b=no
   hudMarkers:i=3
   hudMarkerArrows:b=no
   hudAircraftMarkersMaxDist:i=0
   hudIndicators:b=yes
   hudShowTankDistance:b=no
   hudTankRangefinder:i=2
   hudMapAircraftMarkers:i=1
   hudMapGroundMarkers:i=2
   hudMarkersBlink:b=no
   hudRadar:b=no
   hudDamageModel:i=0
   hudDamageIndicator:b=yes
   hudLargeAwardMessages:b=yes
   hudWarnings:b=no
   noRespawns:b=no
   respDifficulty:i=2
   aircraftHelpers:b=no
   collectiveDetection:b=yes
   distDetection:i=0
   allowControlHelpers:i=3
   forceInstructor:b=no
   playerTurretDeviation:i=0
   hudOutline:b=no
   ctaCaptureMul:i=2
   damageModel:i=2
   hudSpawnShotMarkers:b=no
   hudShowEnemyDamageLog:b=yes
   bombAssaultFuseTimeOverride:b=no
   noviceDM:b=no
   crewHealingOnlyOnCaptureZone:b=yes
   showBombSight:b=no
   showRadarGunSight:b=no
   visibleNotTraceableIndicators:b=yes
   checkTreesForIndicators:b=no
   drawShipBulletFallIndicator:b=no
   showShipBulletTimer:b=no
   ignoreReplenishment:b=no
   aircraftFriendlyFireForBanOnly:b=no
   enableLeaveKills:b=yes
   airToAirMissileDetection:b=no
   rocketSpotting:b=no
   nightVisionInTPS:b=no
   hudDetectAlly:b=yes
   keepDeadTankOnMap:b=yes
   keepDeadShipOnMap:b=yes
   hudSendSquare:b=no
   hudShowAttentionMarkForAircraft:b=no
   shipSupportPlanes:b=no
   checkActivityByPlayerDamage:b=no
   shipGunsRearm:b=no
}

netDifficultyBlk{
   baseDifficulty:i=1
   engineControl:i=1
   realGunnery:i=1
   realDamageModels:b=yes
   stallsAndSpins:b=yes
   redOuts:b=yes
   mortalPilots:b=yes
   manualTrimming:b=no
   torqueAndGyro:b=no
   flutter:b=yes
   limitedBombsMissiles:b=yes
   sensor:i=1
   seeker:i=1
   radarAssist:b=yes
   rwr:i=1
   noArcadeBoost:i=1
   limitViews:i=0
   hudAimPrediction:b=no
   hudMarkers:i=1
   hudMarkerArrows:b=yes
   hudAircraftMarkersMaxDist:i=3
   hudIndicators:b=yes
   hudShowTankDistance:b=no
   hudTankRangefinder:i=1
   hudMapAircraftMarkers:i=1
   hudMapGroundMarkers:i=1
   hudMarkersBlink:b=yes
   hudRadar:b=no
   hudDamageModel:i=1
   hudDamageIndicator:b=yes
   hudLargeAwardMessages:b=yes
   hudWarnings:b=yes
   noRespawns:b=no
   respDifficulty:i=1
   aircraftHelpers:b=no
   collectiveDetection:b=yes
   distDetection:i=1
   allowControlHelpers:i=0
   forceInstructor:b=no
   playerTurretDeviation:i=0
   hudOutline:b=no
   ctaCaptureMul:i=1
   damageModel:i=1
   hudSpawnShotMarkers:b=no
   hudShowEnemyDamageLog:b=yes
   bombAssaultFuseTimeOverride:b=yes
   noviceDM:b=no
   crewHealingOnlyOnCaptureZone:b=yes
   showBombSight:b=no
   showRadarGunSight:b=no
   visibleNotTraceableIndicators:b=yes
   checkTreesForIndicators:b=no
   drawShipBulletFallIndicator:b=no
   showShipBulletTimer:b=yes
   ignoreReplenishment:b=no
   aircraftFriendlyFireForBanOnly:b=no
   enableLeaveKills:b=yes
   rocketSpotting:b=no
   airToAirMissileDetection:b=no
   nightVisionInTPS:b=yes
   hudDetectAlly:b=no
   keepDeadTankOnMap:b=yes
   keepDeadShipOnMap:b=yes
   hudSendSquare:b=no
   hudShowAttentionMarkForAircraft:b=yes
   shipSupportPlanes:b=no
   lightDM:b=no
   checkActivityByPlayerDamage:b=no
   shipGunsRearm:b=no
   setDifficulty:i=1

netDifficultyBlk{
   baseDifficulty:i=2
   engineControl:i=2
   realGunnery:i=1
   realDamageModels:b=yes
   stallsAndSpins:b=yes
   redOuts:b=yes
   mortalPilots:b=yes
   manualTrimming:b=yes
   torqueAndGyro:b=yes
   flutter:b=yes
   limitedBombsMissiles:b=yes
   sensor:i=2
   seeker:i=2
   radarAssist:b=no
   rwr:i=2
   noArcadeBoost:i=1
   limitViews:i=2
   hudAimPrediction:b=no
   hudMarkers:i=0
   hudMarkerArrows:b=no
   hudAircraftMarkersMaxDist:i=0
   hudIndicators:b=yes
   hudShowTankDistance:b=no
   hudTankRangefinder:i=2
   hudMapAircraftMarkers:i=1
   hudMapGroundMarkers:i=0
   hudMarkersBlink:b=no
   hudRadar:b=no
   hudDamageModel:i=0
   hudDamageIndicator:b=yes
   hudLargeAwardMessages:b=yes
   hudWarnings:b=no
   noRespawns:b=no
   respDifficulty:i=2
   aircraftHelpers:b=no
   collectiveDetection:b=yes
   distDetection:i=0
   allowControlHelpers:i=3
   forceInstructor:b=no
   playerTurretDeviation:i=0
   hudOutline:b=no
   ctaCaptureMul:i=2
   damageModel:i=2
   hudSpawnShotMarkers:b=no
   hudShowEnemyDamageLog:b=yes
   bombAssaultFuseTimeOverride:b=yes
   noviceDM:b=no
   crewHealingOnlyOnCaptureZone:b=yes
   showBombSight:b=no
   showRadarGunSight:b=no
   visibleNotTraceableIndicators:b=yes
   checkTreesForIndicators:b=no
   drawShipBulletFallIndicator:b=no
   showShipBulletTimer:b=no
   ignoreReplenishment:b=no
   aircraftFriendlyFireForBanOnly:b=no
   enableLeaveKills:b=yes
   airToAirMissileDetection:b=no
   rocketSpotting:b=no
   nightVisionInTPS:b=no
   hudDetectAlly:b=yes
   keepDeadTankOnMap:b=yes
   keepDeadShipOnMap:b=yes
   hudSendSquare:b=no
   hudShowAttentionMarkForAircraft:b=no
   shipSupportPlanes:b=no
   checkActivityByPlayerDamage:b=no
   shipGunsRearm:b=no
   setDifficulty:i=2
}

netDifficultyBlk{
   baseDifficulty:i=0
   engineControl:i=0
   realGunnery:i=0
   realDamageModels:b=no
   stallsAndSpins:b=no
   redOuts:b=yes
   mortalPilots:b=yes
   manualTrimming:b=no
   torqueAndGyro:b=no
   flutter:b=no
   limitedBombsMissiles:b=no
   radarAssist:b=yes
   sensor:i=0
   seeker:i=0
   rwr:i=0
   noArcadeBoost:i=0
   limitViews:i=0
   hudAimPrediction:b=yes
   hudMarkers:i=2
   hudMarkerArrows:b=yes
   hudAircraftMarkersMaxDist:i=3
   hudIndicators:b=yes
   hudShowTankDistance:b=yes
   hudTankRangefinder:i=0
   hudMapAircraftMarkers:i=2
   hudMapGroundMarkers:i=2
   hudMarkersBlink:b=yes
   hudRadar:b=yes
   hudDamageModel:i=0
   hudDamageIndicator:b=yes
   hudLargeAwardMessages:b=yes
   hudWarnings:b=yes
   noRespawns:b=no
   respDifficulty:i=0
   aircraftHelpers:b=yes
   collectiveDetection:b=no
   distDetection:i=2
   allowControlHelpers:i=0
   forceInstructor:b=no
   playerTurretDeviation:i=0
   hudOutline:b=yes
   ctaCaptureMul:i=0
   damageModel:i=0
   hudSpawnShotMarkers:b=no
   hudShowEnemyDamageLog:b=yes
   bombAssaultFuseTimeOverride:b=no
   noviceDM:b=no
   crewHealingOnlyOnCaptureZone:b=no
   showBombSight:b=yes
   showRadarGunSight:b=yes
   visibleNotTraceableIndicators:b=yes
   checkTreesForIndicators:b=no
   drawShipBulletFallIndicator:b=yes
   showShipBulletTimer:b=yes
   ignoreReplenishment:b=no
   aircraftFriendlyFireForBanOnly:b=yes
   enableLeaveKills:b=yes
   rocketSpotting:b=yes
   airToAirMissileDetection:b=no
   nightVisionInTPS:b=yes
   hudDetectAlly:b=no
   keepDeadTankOnMap:b=yes
   keepDeadShipOnMap:b=yes
   hudSendSquare:b=no
   hudShowAttentionMarkForAircraft:b=no
   shipSupportPlanes:b=yes
   lightDM:b=no
   checkActivityByPlayerDamage:b=yes
   shipGunsRearm:b=yes
   opticalAgmArcadeControl:b=yes
   setDifficulty:i=0
}

netDifficultyBlk{
   baseDifficulty:i=1
   engineControl:i=1
   realGunnery:i=1
   realDamageModels:b=yes
   stallsAndSpins:b=yes
   redOuts:b=yes
   mortalPilots:b=yes
   manualTrimming:b=no
   torqueAndGyro:b=no
   flutter:b=yes
   limitedBombsMissiles:b=yes
   sensor:i=1
   seeker:i=1
   radarAssist:b=yes
   rwr:i=1
   noArcadeBoost:i=1
   limitViews:i=0
   hudAimPrediction:b=no
   hudMarkers:i=1
   hudMarkerArrows:b=yes
   hudAircraftMarkersMaxDist:i=3
   hudIndicators:b=yes
   hudShowTankDistance:b=no
   hudTankRangefinder:i=1
   hudMapAircraftMarkers:i=1
   hudMapGroundMarkers:i=1
   hudMarkersBlink:b=yes
   hudRadar:b=no
   hudDamageModel:i=1
   hudDamageIndicator:b=yes
   hudLargeAwardMessages:b=yes
   hudWarnings:b=no
   noRespawns:b=no
   respDifficulty:i=1
   aircraftHelpers:b=no
   collectiveDetection:b=no
   distDetection:i=1
   allowControlHelpers:i=0
   forceInstructor:b=no
   playerTurretDeviation:i=0
   hudOutline:b=no
   ctaCaptureMul:i=1
   damageModel:i=1
   hudSpawnShotMarkers:b=no
   hudShowEnemyDamageLog:b=yes
   bombAssaultFuseTimeOverride:b=yes
   noviceDM:b=no
   crewHealingOnlyOnCaptureZone:b=yes
   showBombSight:b=no
   showRadarGunSight:b=no
   visibleNotTraceableIndicators:b=yes
   checkTreesForIndicators:b=no
   drawShipBulletFallIndicator:b=no
   showShipBulletTimer:b=yes
   ignoreReplenishment:b=no
   aircraftFriendlyFireForBanOnly:b=no
   enableLeaveKills:b=yes
   rocketSpotting:b=no
   airToAirMissileDetection:b=no
   nightVisionInTPS:b=yes
   hudDetectAlly:b=no
   keepDeadTankOnMap:b=yes
   keepDeadShipOnMap:b=yes
   hudSendSquare:b=no
   hudShowAttentionMarkForAircraft:b=yes
   shipSupportPlanes:b=no
   lightDM:b=no
   checkActivityByPlayerDamage:b=yes
   shipGunsRearm:b=no
   setDifficulty:i=1
}

Enabling Aurora Borealis

It is possible to enable Aurora Borealis for custom missions by manualy editing the .blk file of your custom mission.

1. Finish your mission completely and make sure the sky is functioning properly and how you want it. It is important that you edit the file last or else the CDK will overwrite your edits

2. Open the .blk mission file in Notepad

3. Scroll down to the mission{ block

4. Add the code bellow under the stars{ block, if you already have the customWeather{ block add only the aurora_borealis{ block within it.

   customWeather{
     aurora_borealis{
       enabled:b=yes
       top_height:r=15.0
       top_color:p3=0.1, 0.1, 1.4
       bottom_height:r=2.0
       bottom_color:p3=0.1, 1.3, 0.1
       brightness:r=2.74
       speed:r=0.01
       luminance:r=15.0
       ripples_scale:r=15.3
       ripples_speed:r=0.03
       ripples_strength:r=0.14
     }
   }

An example mission{ block of a multiplayer Night mission on the Arctic map set to the correct longitude and latitude of the supposed real life location of the map.

 mission{
   type:t="domination"
   level:t="levels/avg_arctic.bin"
   environment:t="Night"
   weather:t="clear"
   locName:t=""
   locDesc:t=""
   scoreLimit:i=50000
   deathPenaltyMul:r=0
   allowEmptyTeams:b=yes
   showTacticalMapCellSize:b=yes
   stars{
     latitude:r=80
     longitude:r=47
     year:i=2025
     month:i=12
     day:i=15
     localTime:r=0.1
   }
   customWeather{
     aurora_borealis{
       enabled:b=yes
       top_height:r=15.0
       top_color:p3=0.1, 0.1, 1.4
       bottom_height:r=2.0
       bottom_color:p3=0.1, 1.3, 0.1
       brightness:r=2.74
       speed:r=0.01
       luminance:r=15.0
       ripples_scale:r=15.3
       ripples_speed:r=0.03
       ripples_strength:r=0.14
     }
   }
 }

Sample missions

• Sample multiplayer mission with respawn zones, capture zones and AAA units

See also

• Instructions for Using the Mission Editor
• Mission creation basics
• Singleplayer mission creation basics
